OnyxW 2K Series

Great Opportunities Come in Small Packages

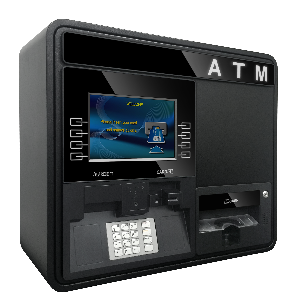

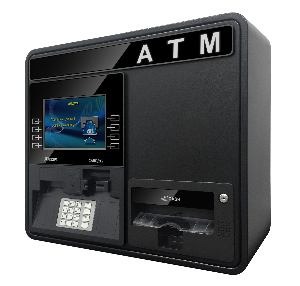

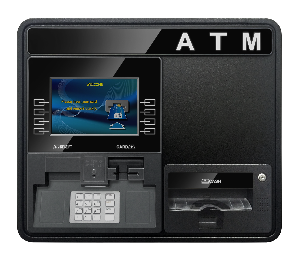

Introducing the all new Onyx-W 2K ATM. The Onyx-W can be installed securely as a Wall Mount or on a Counter Top. You're installation options are only limited by your imagination.

Featuring a high-resolution 10.1" LCD screen and light-up touch function keys along with 2" receipt printer, the Onyx-W uses the same modules and software capabilities and functions found in existing Genmega ATMs.

Dispensing is handled via a 2000-note removable cassette which is secured inside it's own internal vault system which is available with electronic locks.

Integrated Illuminated Sign

  • High Visiblility LED Sign
  • Attract Customers

LCD Screen

  • 10.1 inch wide TFT LCD Panel
  • 1280x800 Resolution
  • Customizable Ad Screens
  • 8 Lighted-Touch function keys

Printer

  • 56mm (2" standard)

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI 3.0 Certified EPP (Encrypting Pin Pad)
  • LED Illumination

Communication

  • 56Kbps dial-up modem
  • TCP/IP Ethernet connection - Onboard SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • EMV (DIP Type)

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • Electronic Lock
  • A-series Lock
  • Cencon Lock

Cash Dispenser

  • 2000 Note Removable Cassette (WCDU 2K)

Dimensions

  • Height = 22.5"
  • Width = 26.77"
  • Depth = 9.84"
  • Weight = 155 lbs (With WCDU-2K cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts
