G6000 Series

Adding flexibility to your business

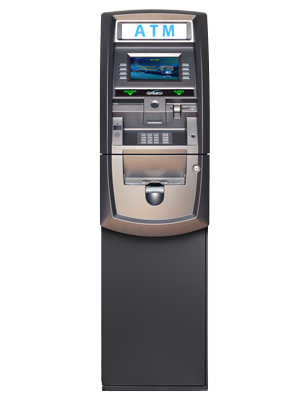

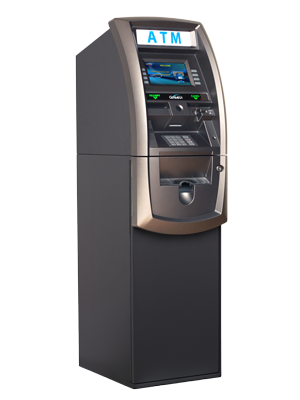

Genmega Introduces the G2500 series ATM.

Designed for retail and off-premise locations, the G2500 comes loaded with all the features you expect, and also provides additional hardware configuration choices allowing you to custom fit each machine to the needs of your customer or location.

The G2500 comes standard with an 8" high-resolution wide-screen LCD, which can be upgraded to a 10.2" touch screen. The receipt printer can also be upgraded to a 3" graphics-capable for custom branding or coupons. The integrated topper can also be paired with a selection of energy-efficient LED toppers to add visual impact and attract customers.

In addition to the fixed, removable and multi cash cassette dispenser options offered by Genmega, the G2500 can also support cash dispensers from other equipment suppliers, providing more flexibility and upgrade options for existing deployments.

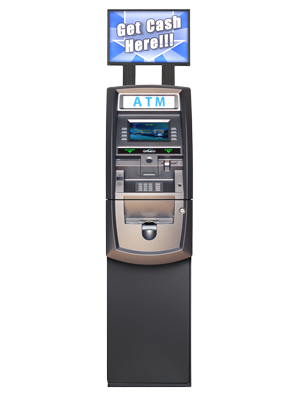

Topper

  • Optional LED Topper Sign
  • Can accept custom inserts

Integrated Illuminated Sign

  • High Visiblility LED Sign
  • Attract Customers

LCD Screen

  • 8 inch diagonal 32-bit color
  • Backlit TFT LCD panel
  • 800x480 Resolution
  • 10.2 inch touch-screen (Optional)
  • Customizable Ad Screens

Printer

  • 56mm (2" standard)
  • 80mm (3" optional)
  • Graphics Capable with 3"

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI/Interac Certified
  • Triple-DES (TDES) compliant EPP

Communication

  • 56Kb Internal Model
  • TCP/IP Ethernet - SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • DIP Type card reader
  • EMV Optional

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic Locks
  • A series Lock
  • Kaba MasCencon Locks

Cash Dispenser

  • 1000 Note Removable Cassette (SCDU)
  • Up to 4 x 2000 Note Removeable Cassette (HCDU)

Dimensions

  • Height = 63”
  • Width = 27”
  • Depth = 19”
  • Weight = 230 lbs (With SCDU cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
