ATM

G6000 Series

Self Service Evolution

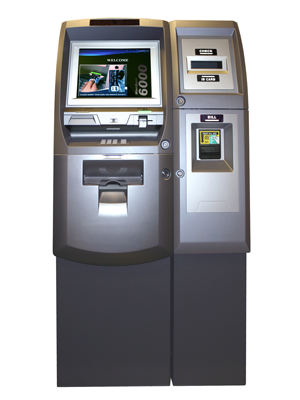

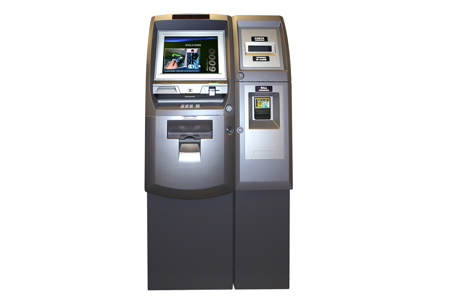

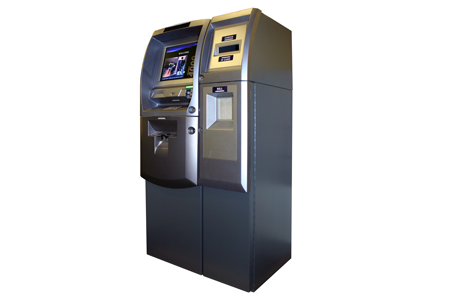

Genmega understands that maximizing revenue and delivering your self-service solution in a reliable and customer friendly form is critical to your business. Combining traditional ATM functionality along with the power to drive an array of components and devices, Genmega has engineered and designed the all new G6000 ATM-Kiosk with your self-service solution in mind.

The matching Side-Car component chassis allows easy integration of devices and components needed to bring your unique solution into reality. The Genmega G6000 ATM includes high-end features including a 15” touch screen LCD, eye catching modern design and host of hardware options driven by a Microsoft Windows™ operating environment for maximum flexibility.

High-Brightness Topper

  • Optional High-Brightness Topper Sign
  • Customizable Graphic Insert
  • Optional Video Topper

Touch-Screen LCD Display

  • High-Res 15” touch screen LCD panel
  • 1024 x 768 XVGA resolution
  • 250 cd/m2 Luminance

Printer

  • 80mm Thermal Receipt Printer
  • 40 Characters per line
  • 200 DPI mono-graphic printing

PIN Entry Device

  • 16-key alphanumeric keypad
  • VISA/PCI and Interac Certified
  • Triple-DES (TDES) compliant EPP

Cash Dispenser

  • Friction Feed – Spray type
  • Single Cassette upgradable to four
  • Auto-recovery for bill jams
  • Front loading cassettes
  • Up to 4 x 2000 Note Removable Cassette

PC Platform

  • Intel ATOM® N2550 Processor
  • Windows 7 Professional (32bit)
  • 500 GB Hard Disk Dirve
  • TCP/IP Ethernet

Magnetic Card Reader

  • DIP Type card reader
  • EMV Optional

Sidecar Chassis

    • Peripheral Options:
    • Bill Acceptor 500 and 1000 note cassette capacities
    • Check Scanner
    • Digital Security Camera
    • Lighted Action Indicator LED

ADA

  • Voice Guidance
  • Lighted Action Indicators
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • LaGarde electronic lock
  • Kaba Mas Cencon Series Lock (optional)
  • Level 1 Vault (optional)

Dimensions

  • Height = 56.0”
  • Width = 18.1”
  • Depth = 24.1”
  • ATM Weight = 320 lbs. (Without cash dispenser)
  • Sidecar Weight = 150 lbs. (no devices)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
