ATM

G1900 Series

Discontinued

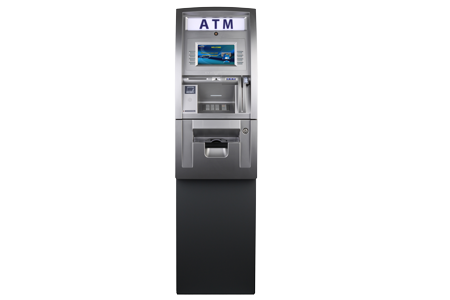

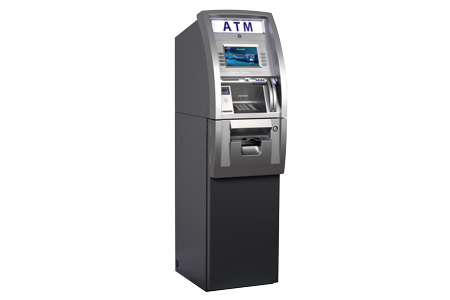

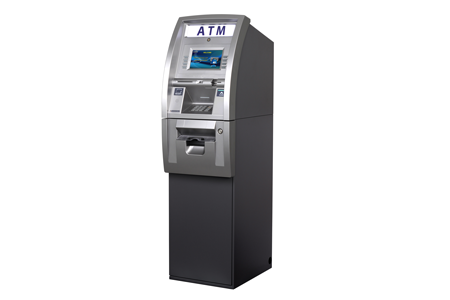

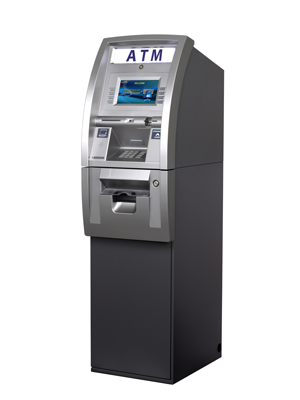

Introducing the Genmega G1900 series retail ATM. Designed and engineered to meet the needs of the highly competitive retail ATM market, this innovative machine combines all the features you expect, built on a flexible platform allowing you to custom fit each machine to its location and traffic volume.

Packed with features like a 8” high-resolution LCD screen, ready for your custom advertisements and a reliable dual-head swipe card reader (upgradable to DIP and EMV). The G1900 Series vault has been reinforced along the door edge, and a flashing security LED added to help prevent physical attacks.

In addition to the dispensing options offered by Genmega, including drawer, cassette, and multi-cassette devices, the Genmega G1900 series supports several other popular dispenser models including the De La Rue SDD© and the Puloon LCDM1000© providing an economical upgrade for existing machines.

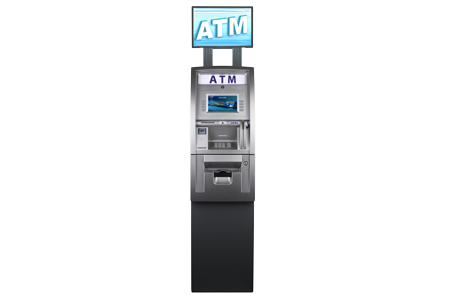

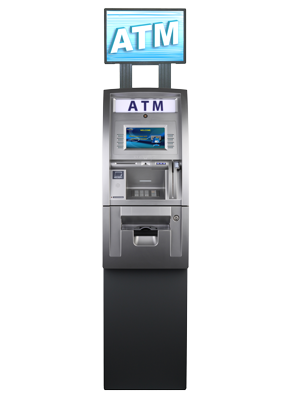

High-Brightness Topper

  • Optional Topper Sign
  • Can accept custom inserts

Integrated Illuminated Sign

  • High Visibility LED Sign
  • Attract Customers

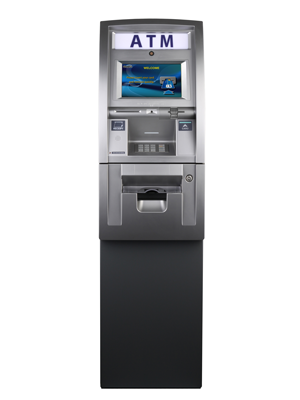

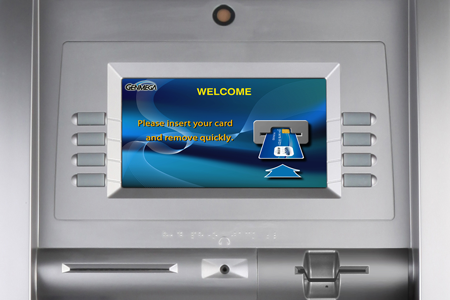

LCD Screen

  • 8 inch diagonal 32-bit color
  • Backlit TFT LCD panel
  • 800 x 480 WVGA
  • 8 Customizable Ad Screens

Printer

  • 56mm Thermal Receipt Printer

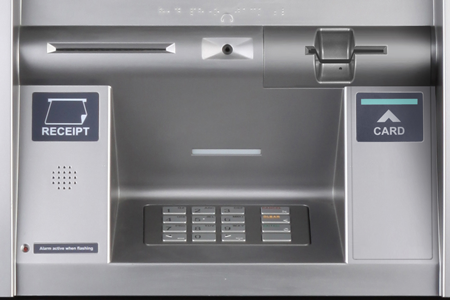

PIN Entry Device

  • 16-key alphanumeric keypad
  • VISA/PCI and Interac Certified
  • Triple-DES (TDES) compliant EPP

Cash Dispenser

  • 800 Note Fixed Cassette (TCDU)
  • 1000 Note Removable Cassette (SCDU)
  • 1700 Note Removable Cassette (MCDU)
  • 2x1700 Note Multi-Cassette (MCDU)

  • Optional Support for:

    • De La Rue SDD
    • Puloon LCDM1000

CPU

  • Samsung S3C2440AL-40 RISC 32-bit CPU
  • 64MB RAM / WinCE™ 5.0 OS
  • Electronic Journal > 40,000 transactions

Communication

  • 56,000 bps dial-up modem
  • TCPIP Ethernet connection – Onboard SSL

ADA

  • Voice Guidance
  • Lighted Action Indicators
  • Accessible Keypad Layout

Card Reader

  • Dual-Head Swipe Card Reader
  • EMV – DIP Optional

Security

  • UL291 Business Hours Vault
  • Door Seam Reinforcement
  • Dial or Electronic Lock

Dimensions

  • Height = 56.36”
  • Width = 15.75”
  • Depth = 22.29”
  • Weight = 206 lbs.

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
